USE:
All kinds of 60- 600 grams paper and cloth etc composite materials, especially for
papermaking and Corrugated board boxes factories, the optimal option of cutting equipment.
FEATURE:

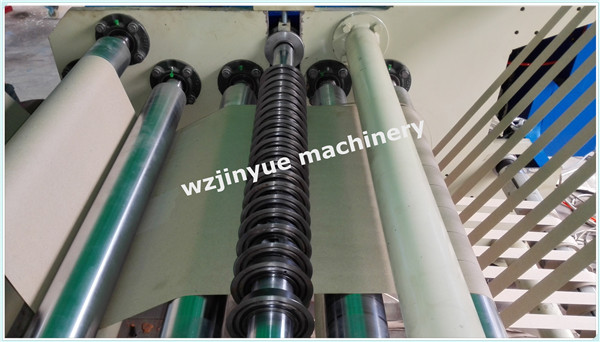

1.Imported pneumatic circular knife cutting, high precision cut, convenient operation,
paper cutting width cutting knife can be arbitrary regulation.
2. With two separate air expansion shafts, automatic loading and unloading.

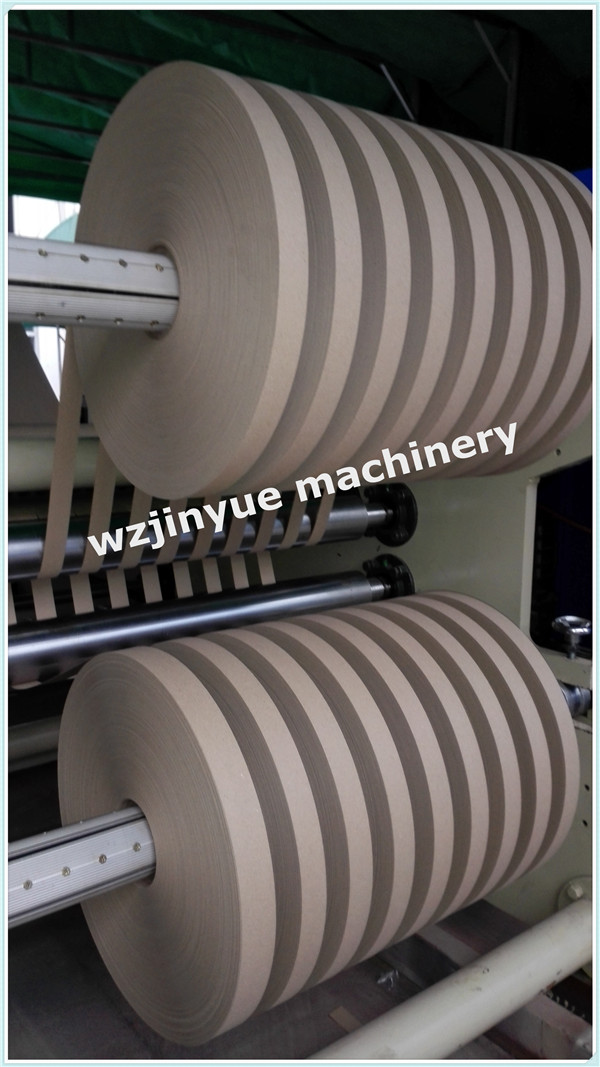

3. Pneumatic tension automatic control, paper tape re-winder tidy and compact.
4. Feeding materials plate frame adopts automatic promotion function.
Technical Parameter | Control system |
Jumbo roll width | 10-800 mm | PLC controller | Delta DVP14SS2 |
Un-winder diameter | 1100 mm | Touch screen | MCGS TPC7062 |
Re-winder diameter | 600 mm | transducer | YASKAWA |
Slitting speed | 0-100 m/min | Electrical product | CHINT |
Slitting range | 60-600 g | Signal part | SHHG |
Re-winding method | stalk involution | Pneumatic part | AIRTAC |
Blade quantity | 21 pairs | Driving system |
Load paper roll | Motor driven | Main motor | 4.0 KW |
Speed adjust | Transducer | Load paper power | 2.2 KW |
Power supply | 3*380V | Correction motor | Y110 6:1 |
Mainframe (mm) & Weight | Winding reducer | WPA120 |
Un-winder part | 1500*1600*1200 | Load paper reducer | WPA100 |
Re-winder part | 1500*1900*1400 | Driving way | Connected bearing |
Up-blade | 105*70*4 | Equipped devices |
Low-blade | 105*70*4 | Load paper way | Automatically motor driven |
Weight | 2000 KGS | Unload paper way | Electric hoist |
Accessories | Auto edge correction | Electric screw correct device |
Useful tool | 1 set | Counter meters | Automatically counter |
Wrench | Hex wrench | Tension correction | Pneumatic adjust |
One instruction manual | Brake | Double steam brake adjust |
