video link: https://youtu.be/3thH5JvbkT8
USE:

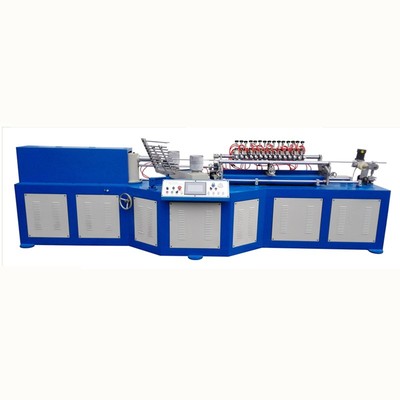

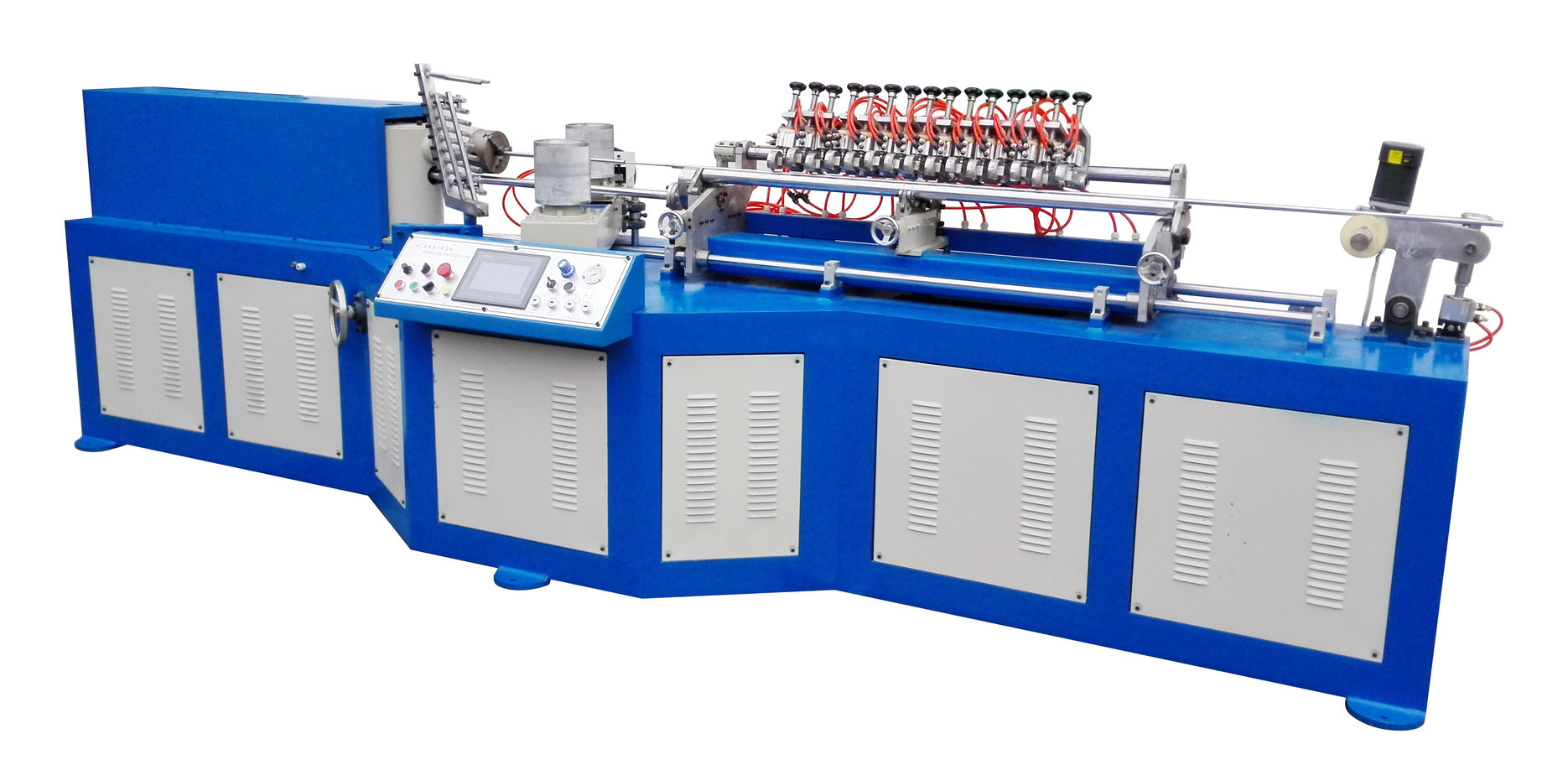

Suitable for all kind of paper tube / paper can production. Such as package tin, tea caddy,
food cans, wine cans, fireworks tube, calendar tube, fax paper core, etc.
FEATURE:
With online multi-cut blades, no need secondary cutting, save labor and time.
Technical Parameter | Control system |
Number of roller | 3-5 layer | PLC controller | Delta DVP28SV |
Tube diameter | 10--60 mm | Touch screen | MCGS TPC7062 |
Tube wall-thickness | 0.5-2 mm | Transducer | SANJING |
Core mould fixed way | Flank chuck | Electric part | CHINT |
Winding head | 2 | Single part | SHHG |
Cutting way | Servo synchronism multi-blade cutting | Pneumatic part | ROANY |
Gluing way | Single / double sides | Fix length way | Encode |
Operator | 1-2 person | Equip device |
Winding speed | 3-30 m/min | Paper shelf | Have |
Speed control | Transducer | Auto fall tube shelf | Have |
Driving system | Glue shelf | Have |
Main motor | 4.0 KW | Belts | 2 |
Reducer type | RV type | Core mould | 2 |
Cutting motor | Stepper motor | Baldes quantity | 6 standard |
Glue pump | 750W | Area space | 8000*8000 mm |
Mainframe size | 4000*1600*1600 mm | Weight | 1500 KG |
Cut left -right move | Belt+servo motor | Synchronism cutting | Servo motor |
