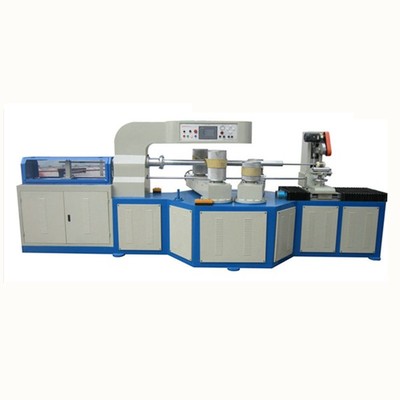

HS-120 paper tube machine

USE:
Apply to textiles, plastic, industrial pipe, such as fabric reel, chemical fiber pipe, airflow spinning inner core, etc.


13353313348

Detail

USE:

Apply to textiles, plastic, industrial pipe, such as fabric reel, chemical fiber pipe, airflow spinning inner core, etc.

Technical Parameter		Control system
Number of roller	3-16 layer	PLC controller	Delta DVP14SS2
Tube diameter	20-200 mm	Touch screen	MCGS TPC7062
Tube wall-thickness	1-10 mm	Transducer	YASKAWA 7.5 KW
Core mould fixed way	Flank chuck	Electric part	CHINT
Winding head	4	Single part	SHHG
Cutting way	Round knife	Pneumatic part	AIRTAC
Gluing way	Single / double sides	Fix length way	Optoelectronic switch/encode
Operator	1-2 person	Equip device

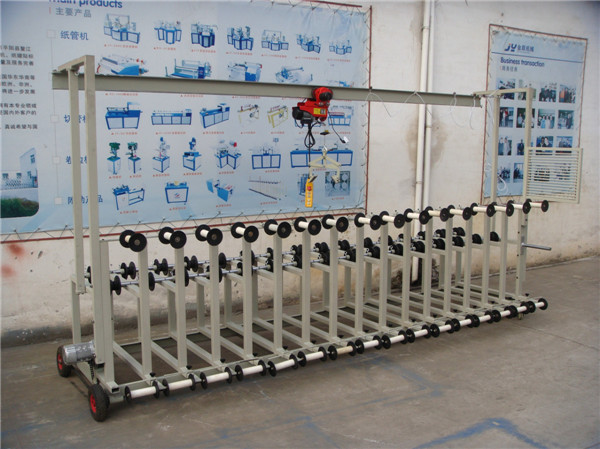

Winding speed	3-20 m/min	Paper shelf type		Integral reel stand

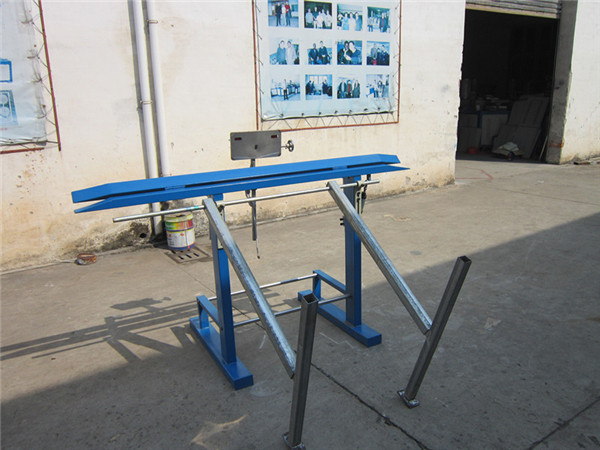

Speed control	Transducer	Auto fall tube shelf		Have

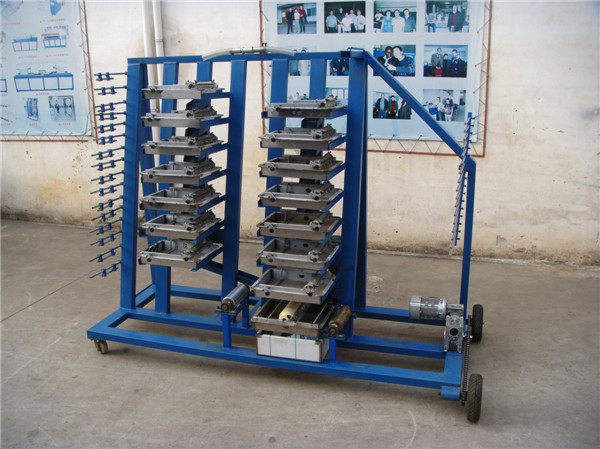

Driving system		Glue shelf		Have
Main motor	7.5 KW	Belts		4
Reducer type	RV series	Core mould		2
Cutting motor	Stepper motor	Cut up-down control		Y lead screw+ stepper motor
Glue pump	750 W	Cut left-right control		Z lead screw+ servo motor
Mainframe size & Weight
Mainframe size	520020002000 mm	Weight		3000 KG
Area space		12000*8000 mm
